Yamaha Wolverine RMAX Self-Canceling Turn Signal System with Horn

Plug and Play Easy Install
Fits 2021 Yamaha Wolverine RMAX
Fits 2 and 4 Seat Models
Includes two .75″ 3 LED front Amber Lights
Plugs into OEM Brake Light Harness, using Factory Rear Lights
Laser Etched LED Lit Turn Switch
Lit Emergency Hazard Switch
Rear Power Out for optional license plate light
Made in the USA!
*Before Ordering, Please See Notice below

SKU: ATS-YAM-RM Tags: , ,

$389.00

Description

Self-Canceling Turn Signal Kit for 2021 Yamaha Wolverine RMAX

XTC Power Products Leads the way in UTV wiring. You will never leave your turn signal on with our new Self-Canceling Turn Signal System for the 2021 Yamaha Wolverine RMAX. Similar to its predecessor, the TSS (Turn Signal System), the ATS is a Plug and Play easy install Yamaha Wolverine RMAX turn signal kit. The ATS consists of a small solid-state control box that performs its functions–differing from the prior generation’s larger control box. Like the TSS, the ATS Self-Canceling Turn Signal Kit is a modular design with vehicle specific SKUs.

How the ATS Works

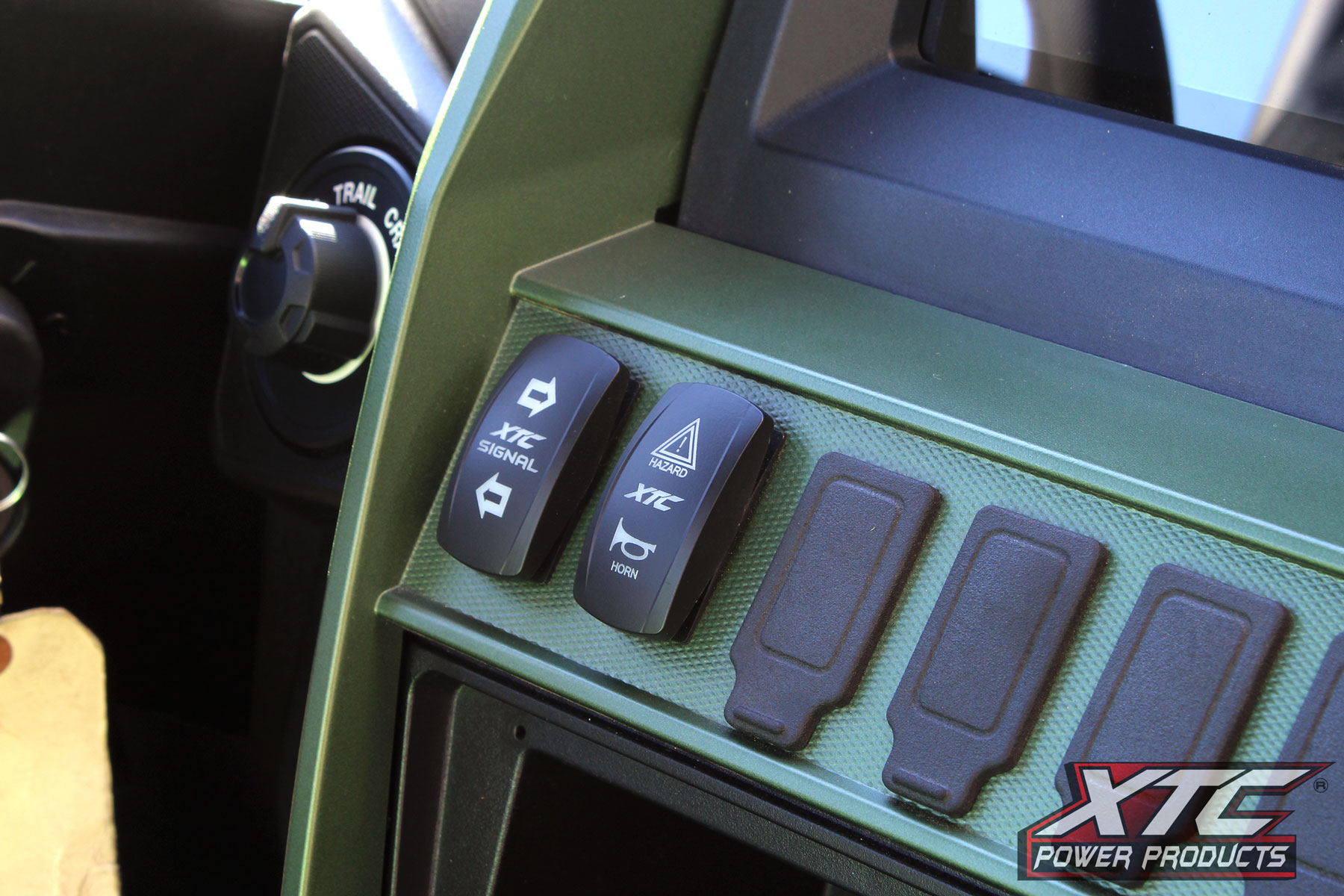

All ATS part numbers include a marine grade rocker switch with laser-cut directional arrows that flash green when activated. When you press the turn signal rocker switch, the ATS will activate the turn blinker for a short duration and then self-cancel. This feature is useful for simple lane changes. On the other hand, an extended rocker switch press will yield a longer blinker duration suitable for making left- and right-hand turns. You can manually cancel the turn signal by pushing the actuator a second time.

Also Included

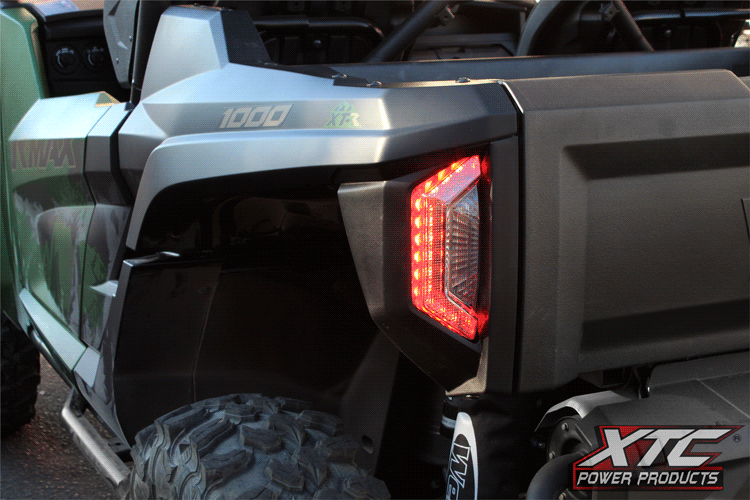

Also included in our Self-Canceling Yamaha Wolverine RMAX turn signal kit is a ‘Hazard/Horn’ rocker switch. Pressing the top ‘Hazard’ side of the actuator will turn on the hazard lights, pressing it again deactivates them. Furthermore, pressing the lower portion of the custom rocker switch will activate the included street legal FIAMM horn. Each ATS has a vehicle-specific harness that plugs inline with the rear factory taillight harness. The brake light signal passes through the ATS. As a result, the opposing brake light still functions normally while the activated turn signal brake light flashes.

Hands-on with the ATS Yamaha Wolverine RMAX Turn Signal Kit

Unlike our competitors, all ATS kits include an auxiliary power out for a license plate light or whip lights. Moreover the aux power is good for powering our 6″ LED Lit License Plate Frame.  Above all, each system comes with a vehicle specific power connection. Without a doubt, it’s easy to install with no wires to cut and no crimping. Because of its size, the ATS is versatile to mount as well. Everything needed to integrate with your vehicles OEM brake light harness included. Unplug the rear light harness, plug-in ours, and enjoy. XTC Power Products, made in America and Wired For Fun®!

Make Model Year
Yamaha Wolverine RMAX 2021 - 2024

Additional information

Dimensions 11.25 × 8.75 × 4.25 in

Installation Help

ATS-YAM-RM-IB
